Installing and maintaining a steel structure laser cutting machine requires careful planning, suitable working conditions, and regular inspections. For manufacturers processing structural steel, a well-prepared installation site and a clear maintenance plan can help reduce equipment downtime and support consistent production.
The AORE GR-H all-in-one laser cutting machine is designed for metal cutting applications. Before putting the machine into operation, users should confirm the site requirements, prepare the necessary utilities, and ensure that operators understand the correct procedures.
Preparation should begin well before the machine arrives. The workshop must have sufficient space for installation, operation, material handling, and future maintenance.
A practical preparation timeline includes:
10 weeks before installation: Review the workshop layout, foundation requirements, and transportation access.
8 weeks before installation: Arrange operator training and assign personnel responsible for equipment operation and maintenance.
4 weeks before installation: Prepare the required electrical connections and compressed air supply, where applicable.
2 weeks before installation: Check the availability of cutting gases, cooling water, and other operating materials required by the selected configuration.
The machine foundation must comply with the installation drawing for the specific model. Reference requirements include a foundation levelness of ±5 mm and a concrete thickness of at least 200 mm. These values should be verified against the relevant GR-H model documentation before construction.
Adequate maintenance clearance is also important. As a reference, leave more than 1,200 mm between the machine's left and rear sides and the workshop walls, and more than 1,000 mm between the laser source and the wall.
A suitable working environment helps protect machine components and maintain reliable operation.
Install the equipment in a dry, well-ventilated indoor area. Avoid direct sunlight, concentrated airflow, solvent vapors, and other potential contaminants.
The reference operating temperature range is -10°C to 40°C. When the machine is switched off, the ambient temperature should not fall below 4°C.
The auxiliary systems must also meet the requirements of the selected cutting process:
Nitrogen: A purity of at least 99.999% is specified for stainless steel cutting.
Oxygen: A purity of at least 99.9% is specified for carbon steel cutting.
Compressed air: Must be clean, dry, and oil-free, with pressure and filtration meeting the equipment specifications.
Cooling water: Use demineralized, distilled, or deionized water of the quality specified in the machine manual.
Hydraulic oil: No. 46 anti-wear hydraulic oil is a reference recommendation; confirm compatibility with the actual machine configuration.
Always check the applicable technical documentation before preparing utilities or purchasing operating materials.

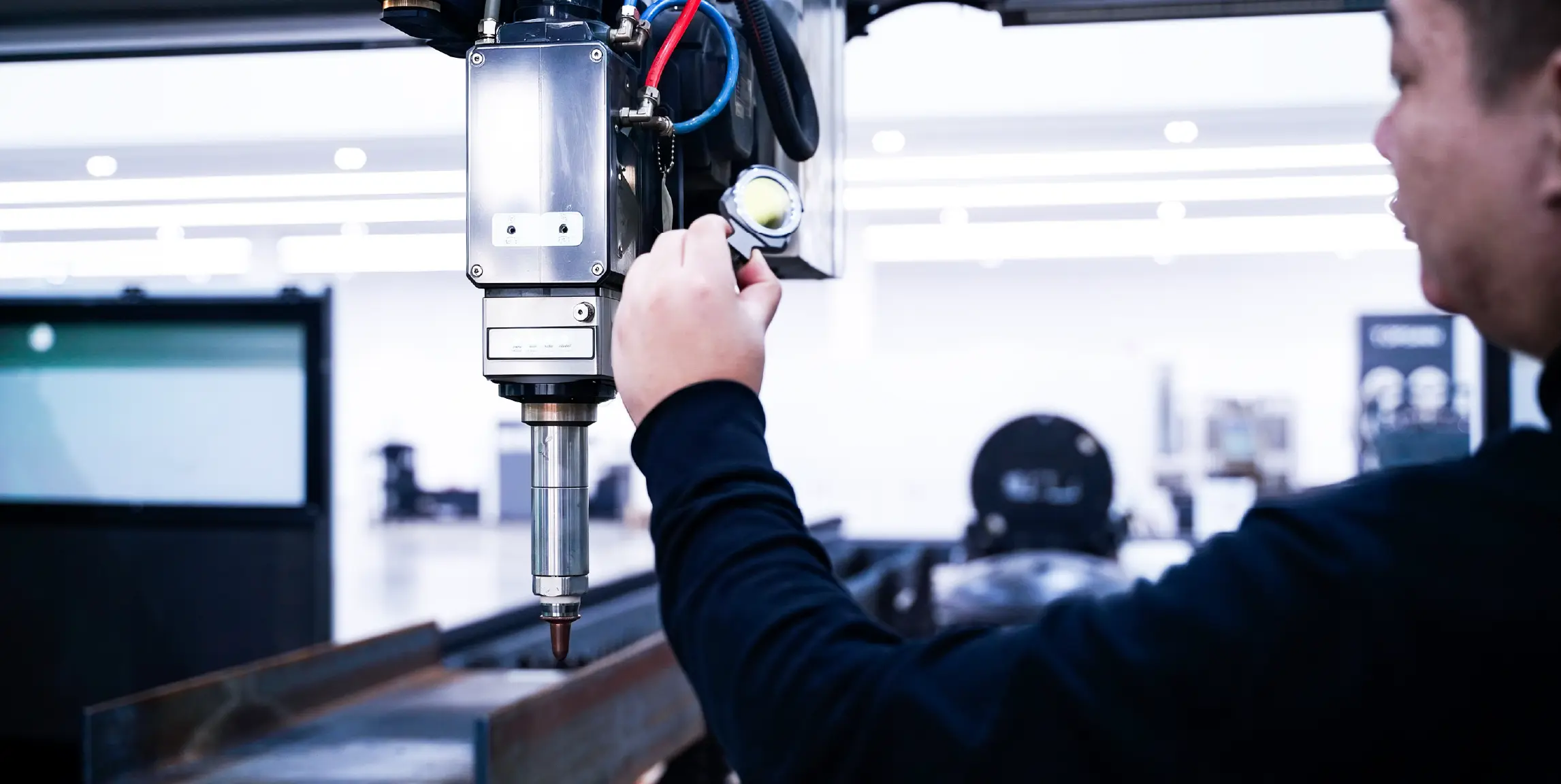

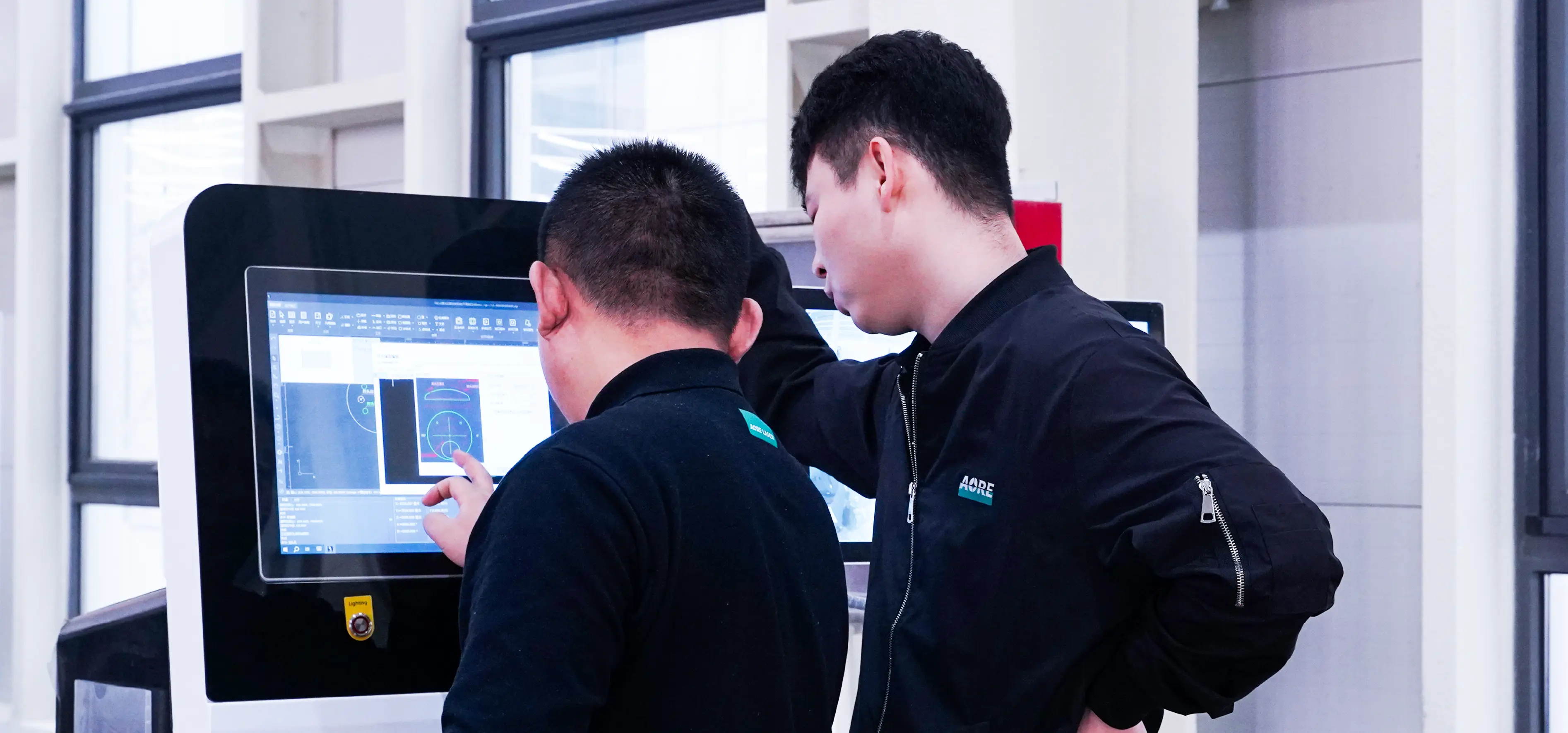

Initial commissioning and pre-production checks should be carried out by AORE-authorized service personnel or other appropriately qualified professionals. Depending on the configuration, the work may include positioning, leveling, calibration, securing the machine, preparing the cooling system, completing connections, testing functions, and providing operator guidance.
Only trained and authorized personnel should operate, commission, or maintain the equipment. If the machine needs to be relocated or dismantled, contact AORE before starting the work. Unauthorized movement or disassembly may damage the equipment and affect warranty coverage.
The GR-H fiber laser cutting machine is intended for cutting metal materials. Users should follow the operating instructions and application limits specified for their particular model.
Routine maintenance helps identify wear, contamination, and potential problems before they affect production. The following checklist provides a general reference. The maintenance manual for the specific model takes precedence.
Maintenance | Recommended Checks |
| Every 8 hours | Inspect and clean dust cloths, scrap collection containers, and oil collection bottles. |
| Every 40 hours | Check pneumatic components, air lines, and water circulation lines. Remove oil and dust from machine covers. |
| Every 100 hours | Check the automatic lubrication pump oil level, replenish when necessary, and inspect the oil lines. |
| Every 500 hours | Clean X-, Y-, and Z-axis guide rails and the X- and Y-axis racks and pinions. Check automatic lubrication and clean air outlets and the chiller filter. |
| Every 1,000 hours | Clean the automatic lubrication pump, replace lubrication oil as specified, and clean the lubrication system oil filter. |
| Every 6 months | Replace the cooling water and clean the circulation system. |
Keep records of completed maintenance tasks. Before inspection or servicing, follow the required shutdown and safety procedures. Work involving specialist adjustments, electrical systems, laser components, or mechanical assemblies should be handled by qualified personnel.
Prepare the installation foundation, workshop space, transportation access, electrical supply, required auxiliary equipment, cutting gases, and specified cooling water. Check the installation drawing and equipment manual for model-specific requirements.
Scheduled inspections help operators identify contamination, lubrication issues, and other potential problems early. Following the manufacturer's maintenance schedule and keeping service records can support more consistent equipment operation.
Contact AORE before relocating or dismantling the machine. The work should be assessed and carried out by appropriately qualified personnel to reduce the risk of equipment damage and safety issues.
Reliable steel structure laser cutting starts with proper installation planning and continues with trained operation and scheduled maintenance. By preparing the workshop, checking auxiliary systems, and following the maintenance instructions for the specific model, manufacturers can support stable equipment operation and more efficient production.
